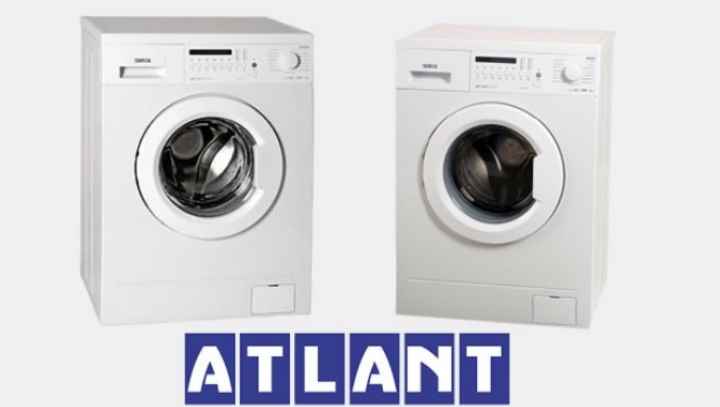

Average specifications of an Atlant washing machine. Before we look at what causes the f4 error, it's worth understanding what Atlant washing machines are. These machines are relatively inexpensive without sacrificing washing quality.
Average water consumption per wash is about 45 liters. Capacity is about 5 kilograms. Low energy consumption. Automatic controls.

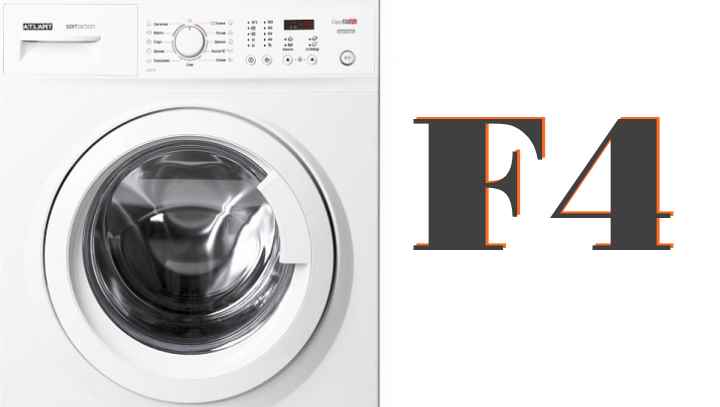

What does error f4 mean?
All specifications may vary depending on the model. But it's safe to say this is a high-quality washing machine.
Often, the F4 code appears at the most inconvenient moment. This notification appears on the machine's display, right in the middle of a wash cycle. This means an error has occurred and needs to be resolved.
If your machine doesn't have a digital display but does have a self-diagnostic system, pay attention to the bottom set of lights. These LEDs are how the machine alerts you to any problems. If your machine has a digital display, everything will be displayed there.
Regardless of its appearance, error code f4 indicates the same problem. The problem is a problem draining waste fluid from the drum. Seeing this code requires immediate repairs.

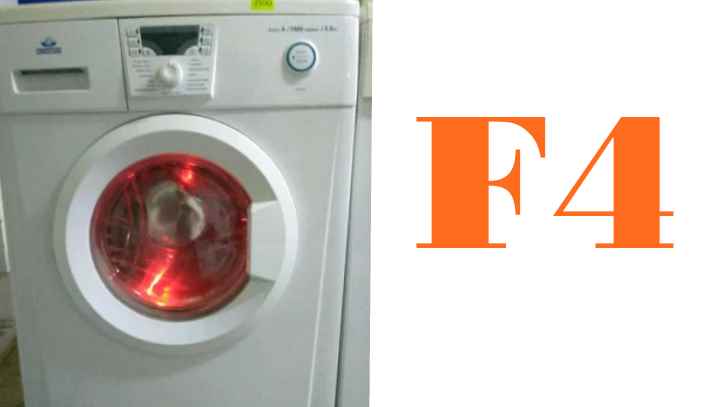

Causes of the breakdown
Before starting repairs, it is worth finding out what exactly is preventing the drainage of dirty water.
The reasons may be simple to fix, while others may require some effort:
- The first possible cause is the drain hose. The washing machine won't be able to drain waste if the hose is clogged or kinked. To fix this problem, simply clean and straighten the hose.
- After checking the hose, check the drain filter. It's located on the front panel, behind the hatch. The filter should be clean and free of debris, dirt, sand, and other debris. It's worth rinsing and cleaning the filter.
-
The third step is to check the pump impeller. You need to check if it's spinning. If it's not spinning, something is blocking it. To fix this, you'll need to remove and disassemble the pump, as shown in the diagram. Clean it and make sure the impeller is spinning.
- After removing the pump, it's worth inspecting not only the impeller but the entire pump. It should be inspected for damage and blockages. The integrity of its winding should also be checked. If this is the problem, the damage should be repaired and the winding replaced. However, if the damage is severe, the entire pump will have to be replaced.
- The control unit is checked last. It's important to inspect the wiring harness leading from the pump directly to the board. If this is the case, the wire should either be insulated or replaced. Finally, the control board is inspected for faults.
Detailed troubleshooting instructions
The causes are now clear. Let's take a closer look at how to fix the problem. It's worth starting with the simplest: disconnect the machine from the power supply and inspect the hose. Check for kinks. It's also worth checking for blockages.
If the problem isn't found, then we move on. You need to find and clean the drain filter. Look for it in the lower right corner. After unscrewing and cleaning the filter, return it to its original position. The simplest part is over; if the machine still displays an error, then it's time to get your tools ready and dig deeper.
First, disconnect the machine from the water and sewer lines. Then, drain the water from the drum. After all these steps, turn the machine over onto its left side for easier access. You'll be able to see the pump from the bottom. Disconnect all the wires from it, and then remove the few screws holding the pump in place. After that, you can remove the pump from your washing machine.
Carefully inspect the pump for damage. If any is present, it should be replaced. If there is a blockage or the winding is damaged, the pump should be flushed and the winding replaced.
If the F4 code continues to display, the most difficult part is yet to come. You'll need to check the wires running from the pump to the electronic module. They should be inspected for damage. If such a wire is found, use electrical tape or replace it.
The electronic module itself is checked last. Its failure is rare, and repairing it yourself would be very difficult. If the problem is with the electronic module, you'll need to contact a specialist.
In conclusion, it's worth mentioning that if you see the F4 error, don't panic. You can often fix your washing machine yourself without the help of a professional. Most often, the problem lies with the pump, which you can easily replace. However, if the problem is electronic, it's best to contact a qualified technician.
