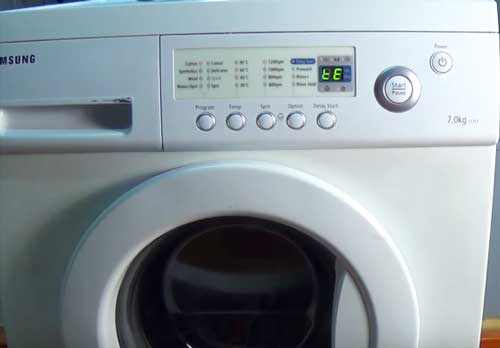

You decided to do some laundry, closed the door, but then the TE error message appeared on the indicator, and your washing machine froze. Or the machine pumped water, spun the drum, and stopped after 5-10 minutes of washing, displaying the same message over and over again. The TE error message is common to all washing machines, no matter the model.
If you have an older Samsung washing machine, you'll notice its indicator features. The "BIO 60°C" and "60°C" temperature LEDs will light up, along with the wash mode indicators.
Common Samsung errors and error deciphering
In addition to all of the above, the tE1 / tE2 / tE3 code may also appear. These errors only occur in machines with a dryer, and appear after the spin cycle, before the dryer option.
TE errors in a Samsung washing machine indicate a problem with the temperature sensor. Your appliance either doesn't display it at all, or isn't receiving the correct data. Because it doesn't know how or what to do.
In theory, the error code te is a temperature sensor error. The EC error is a copy of the TE error for older Samsung devices. The TE error information notifies when the temperature indicator voltage is less than 0.2 V or greater than 4.5 V.
Pay attention!
In addition to the tE water sensor issue, Samsung's drying system also has issues with other temperature sensors—tE1, tE2, and tE3. These sensors alert you to drying performance issues at any point during the drying process.
- tE1 indicates a drying temperature sensor error. The unit is receiving an emergency message or the thermistor is “showing” incorrect data.
- tE2 indicates a problem with the fan housing sensor; it does not provide emergency warnings or the temperatures are very high.
- tE3 indicates a faulty condensate flow sensor, which is present during drying. It may indicate an excessively high temperature or indicate nothing at all.
The main variety!The TE error appears immediately upon turning on the machine or during the first wash cycle, before the water heats up. The tE1/tE2/tE3 codes appear only at the end of the wash and spin cycle, before the start of the drying cycle, or during the drying cycle.
According to the experience of service specialists, the code Ес / tE / tc / tE1 / tE2 / tE3 usually indicates a malfunction of the machine; only in rare cases is it possible to change something yourself.
Error te / tc / ec / tE1 / tE2 / tE3 - in which cases can you fix it yourself:
Master module failure.
- Sometimes this happens randomly; any device can lag. It can be fixed by resetting the machine by reconnecting it to the power outlet. First, unplug the machine, then remove the plug from the socket. Wait a while, drink a cup of coffee, then turn everything back on and restart the machine. If the lag was just a normal one, nothing should happen again.
- Poor contact connection.It's possible that the contacts on the temperature sensor or heating element have become disconnected. This can happen if the machine was moved, for example, during a move. Tug on the wire contacts, making sure to tighten them as if you were trying to insert something very far with difficulty. breaking If it was in this version, then the machine will definitely work.
- Sensor display failure.Sometimes the sensors are misleading, indicating that the temperature of the monitored components is too high. You can reset the readings on individual sensors in your vehicles. If this was the cause of the error, everything will be fine after repair.
If all of the above fails and the washing machine continues to act up with the te error, your appliance, and in this case the washing machine, needs to be thoroughly checked by specialists.
Common problems that need to be repaired:
Our specialists have serviced approximately 3,000 Samsung washing machines. The most common causes of the TE error are the problems listed in the table.
| The first signs of an error | Probable cause of appearance | Repair or replacement | Price (spare parts + work of the master) |
Samsung washing machine:
|
Usually the cause is a malfunction temperature meter thermistor liquids in the car. | It may be necessary to change the sensor. Usually it is not so easy to change it, so the only option left is to change the heating element. |
from 2450 to 4950 rubles |
| When washing on certain modes, the Samsung washing machine does not heat the water and shows a malfunction after 5-15 minutes of washing. Then everything stops. | The heating element has failed.. | If necessary, replace the heating element with another working one. | from 3100 to 4950 rubles |
| Samsung machine:
|
The driving element of the washing machine shows no signs of life. | If the leading module is broken, the connection is made by soldering the contacts, meaning all you need to do is repair the board. If after this nothing works, the entire control module needs to be replaced. |
Repairs – from 3400 to 5000 rub. Replace – from 6500 rub. |
| As soon as the machine is turned on, the hatch locks, but then the TE error appears, and the washing machine stops working. | The wiring connecting the heating element to the thermistor and control module is damaged, or the wires at the connection points are burnt.
In private residences, the problem may arise due to mice. |
It is necessary to twist the broken wiring or replace the cable with the guts as much as possible.
If there is a problem with the contacts, you need to completely change the wires to get it working. |
from 1450 to 2950 rubles |
| Samsung machine notifies about error te:
|
The drying heating element sensor is not controlled. | If the sensor is separate, then it simply needs to be replaced. If the sensor is part of the dryer's heating unit, then without a choice, the entire heating element will have to be replaced. | from 2450 to 6900 rubles |
| The machine reports an error a few minutes after drying has started and then stops immediately. | The fan housing temperature indicator is not functioning. This is usually caused by a short-circuit in the element. | It may be necessary to replace the fan housing thermistor. | |
| After the drying process starts, after a few minutes, everything turns off showing the error te | The drain sensor is damaged. | The condensate flow thermistor needs to be replaced. | |
| After you turn on the machine, after a moment the error te is displayed and the selected washing option is stopped. | The wiring is broken, or perhaps the contacts for the dryer temperature indicators, the fan, or perhaps the condensate flow. The sensors are blind to the monitored components or are not reporting data to the control module. The contacts are broken due to high humidity if the machine is not dried or is not dried properly. Wires can be cut by mice if the equipment is installed in a private home or in a basement. |
It is necessary to twist the problematic part of the wiring or replace it completely.
If there is a problem with the contacts, you need to partially clean them; if that doesn’t help, then replace them completely. |
from 1450 to 2950 rubles |
