DIY washing machine programmer repair

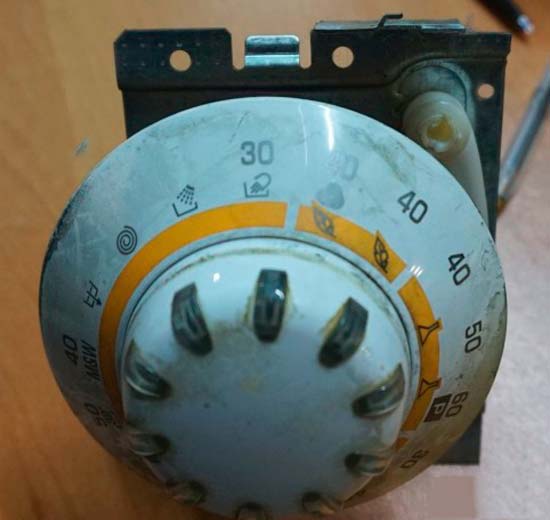

The programmer is a pen on control panels most washing machines. It seems simple, but in fact, it is a complex mechanism that controls the activation and deactivation of various washing programs, the selection and draining waterThis is a complete control unit, consisting of many parts. It looks like a protruding knob on the control panel.

Its role is undoubtedly important, as the final result depends on its functionality. This mechanism is located near the handles, displays, and buttons. Some call it a command device or a programmer timer for a washing machine.

What is a programmer?

Programmers are reliable and less sensitive to voltage fluctuations than machines, especially premium ones, with electronic control panels, which undoubtedly have their advantages. Machines with fuzzy logic can handle washing processes without a programmer.

Exists two types of programmers: hybrid (mechanical) and electronic.

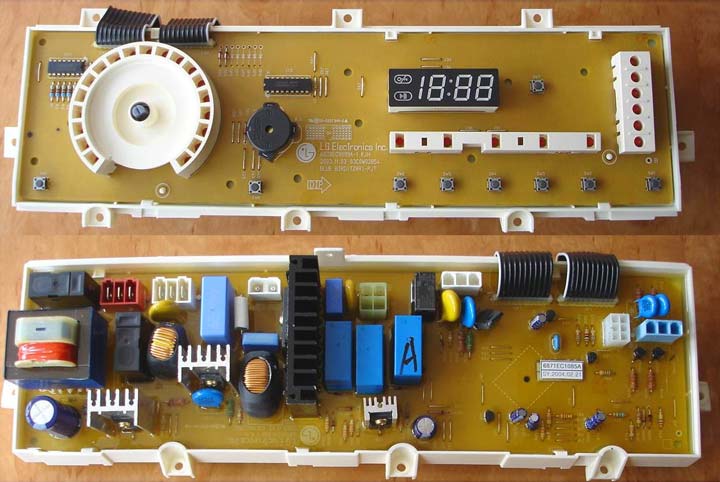

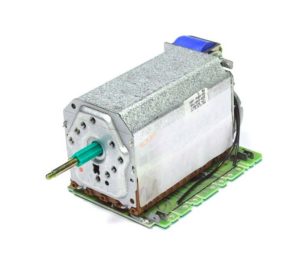

Electronic have a more advanced mechanism with a wider range of functions.

Their disadvantage is that, like all electronic devices, they are sensitive to power surges.

Hybrid More modest, but distinguished by long service life and reliability, and, if necessary, quick and affordable washing machine programmer repair. The programmer's service life is considerable—over 10 years.

And if we consider the frequency of breakdowns of components in washing machines, it will be in last place.

However, external factors can accelerate wear and tear or failure. If there are children in the house, they often accelerate the programmer's failure without any malicious intent.

This part does not like interference during the operation process, otherwise the cycle is disrupted and the control unit itself is damaged.

Programmer malfunction

What are the characteristics of a programmer failure?

1. Typewriter refuses to turn on, but the power grid is fine.
2. The equipment turns on, but there is no response to the timer control.

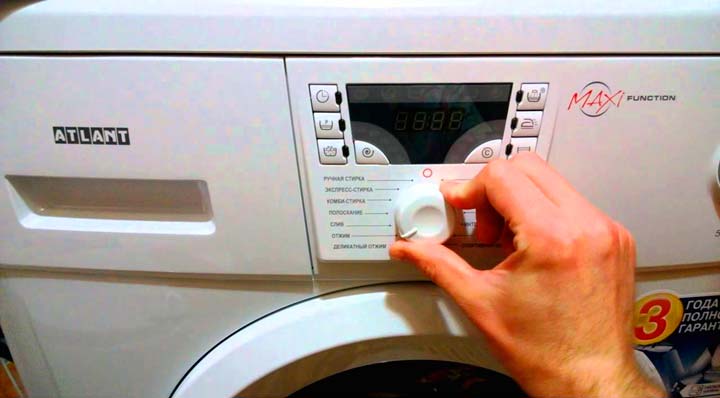

3. There is no washing time on the electronic display.
4. Flashing indicators and the presence of an error.
5. The wash starts but it keeps happening program crash and in washing time, either more or less.

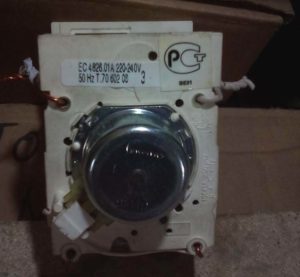

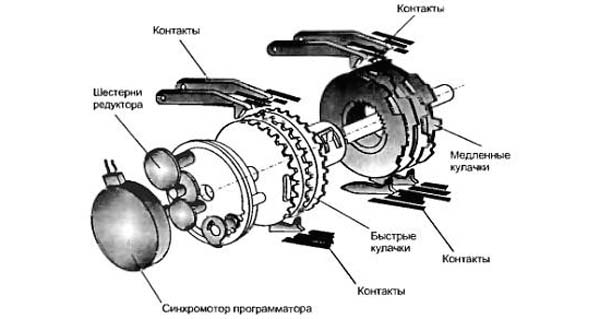

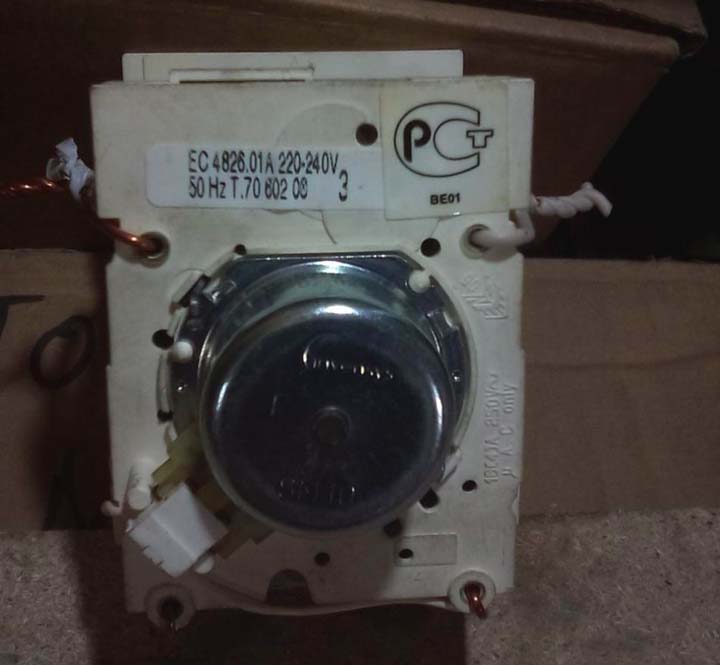

Programmer components can break. A washing machine's mechanical programmer consists of:

• synchromotor;
• contacts;
• cams responsible for the operation of the synchromotor;
• gearbox;
• gears.

Disassembling and repairing the programmer

To repair it, you first need to properly remove the washing machine programmer and disassemble it.

It depends on the washing machine model. There are some specific features to consider when disassembling. For example, if we're talking about an Ariston machine:

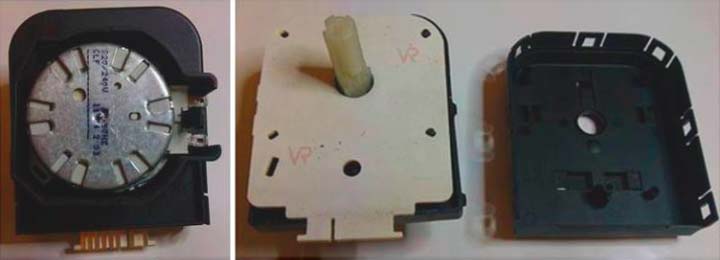

1. The removed programmer must be thoroughly inspected. On the side, you'll see the clips that secure the cover. They can be released with a screwdriver. There are many springs under the cover that will tend to fly apart when removed.

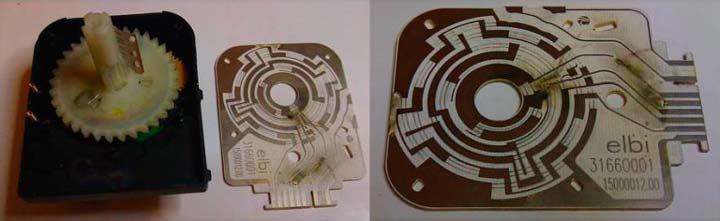

2. Once you remove the cover, you'll see the circuit board on the back. Remove it and set it aside.

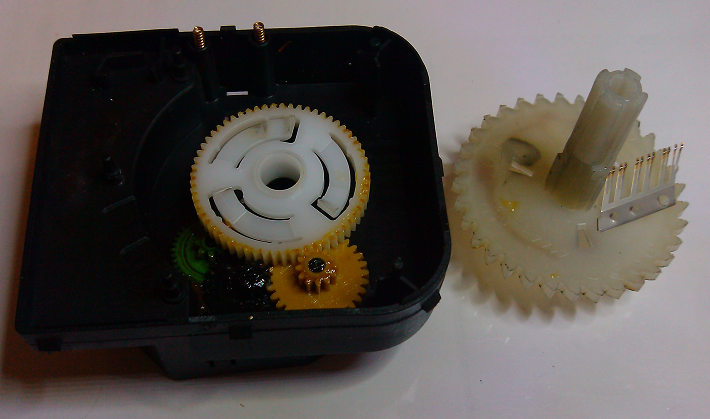

3. Next, the gear is removed and thoroughly examined. If any debris is present, it is cleaned.
4. Let's turn our attention to the board. If there's any visible damage, burnt components, or tracks, they need to be re-soldered.
5. If there is no damage, then the resistance on the contacts is checked using a multimeter.

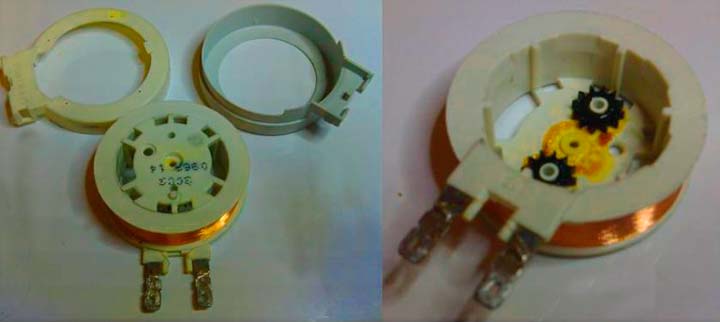

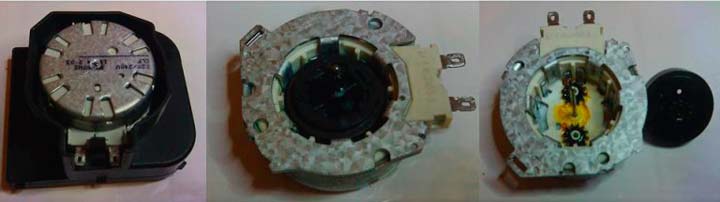

6. Next, all the gears and the motor core are removed. The motor winding is inspected to ensure there are no burnt areas. If any are found, replacement is required.
7. The integrity of all elements and contacts is checked.
8. The programmer is assembled in reverse order.

Repair of German washing machine programmers

Repairing a washing machine's programmer on German models is impossible without knowledge and experience in electronics, which can affect the functionality of related components.

The design of the washing machine programmer is very complex.

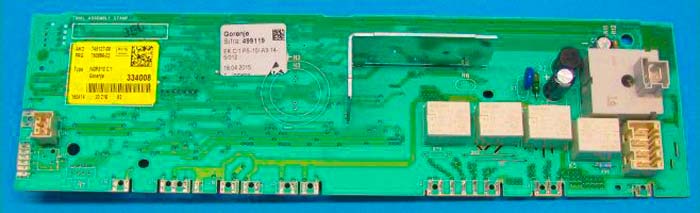

And if we talk about Gorenie, then they generally have a soldered control board and it is recommended to replace the programmer in the washing machine.

Even many professionals won't take on repairs. You can try to repair it yourself if the problem is related to faulty buttons, switches, or the washing machine's programming knob. To do this:

• the fasteners are unfastened with a screwdriver;
• the powder receptacle is pulled out;
• After unscrewing the mounting bolts, the control panel is removed.

You can replace the program switch without disassembling the machine; to do this, simply remove the top cover.
