Air bubble washing machine - advantages and disadvantages, operating principle

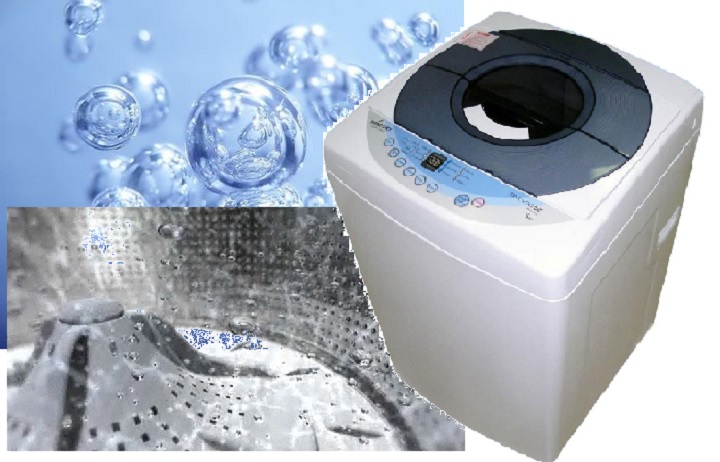

Air bubble washing machineAir bubble washing machines are quite popular these days.

This is a new generation, because technologies are developing further and their number is growing every year.

The most popular design of this type over the past ten years has been the bubble-air washing machine. This trend is most prevalent in Asia, but it has also gained popularity in America.
However, it has recently touched Russia as well, and is now quickly gaining popularity and authority there.

The operating principle of a washing machine

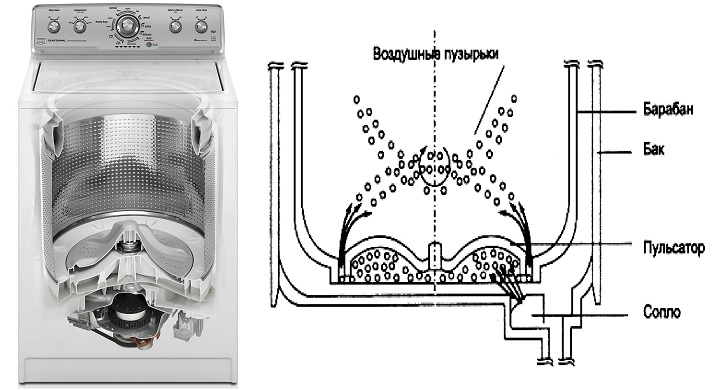

How do bubbles form in a washing machine?As the name suggests, this unit removes various types of stains using bubble circulation.

Air bubbles constantly move in the water and pierce things, with the help of washing powders or liquid fabric softeners, and the bubbles wash away dirty areas.

It's somewhat similar to boiling, but if you boil, you'll just ruin your clothes, because hot water wears out and weakens the fibers.

Bubble technology in automatic machines

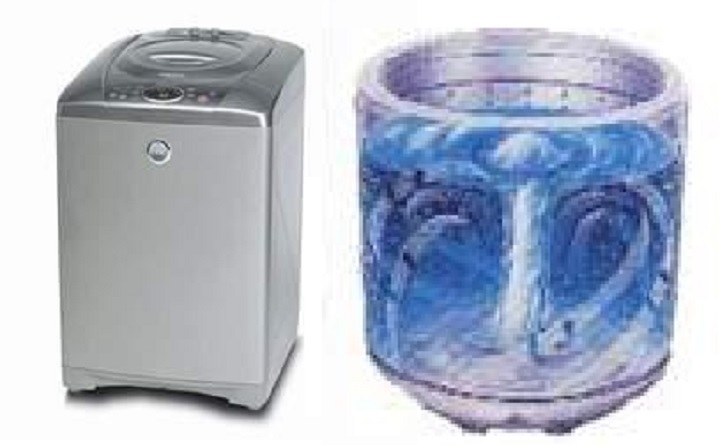

A drum next to a bubble machineOne of the most important parts of an automatic washing machine is the drum, as it is where dirty clothes are loaded and where water flows.

Inside the tub is a stainless steel drum that rotates. Water flows through the inlet hose, picking up the detergent powder from the previously added container.

In this type of machine, after water enters the detergent drawer (rinse aid or powder), the water and these mixtures descend into the so-called bubble generator, located under the drum. Mixed with air, the water rises into the drum through small holes, transforming it into a cleaning solution, creating a large amount of foam and air bubbles.

The bubbles are so effective that they can even tackle stubbornly dried-in stains: they pierce the fabric, dislodging various types of dirt. During the washing process, the bubbles burst, creating heat that resembles boiling.

Washing can be done in either warm or cold water.

Activator washing machines

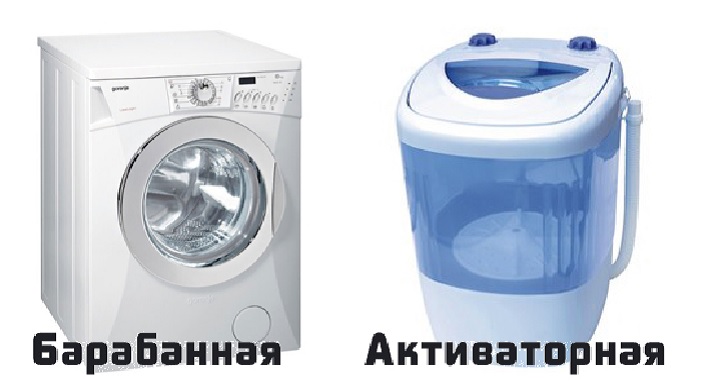

Front loading and activator machinesThe only difference between this type of machine is that these units have a vertical loading form.

At the bottom of the drum is a shaft (pulsator), which creates swirling water flows and jets for washing. A separate component of the activator machine—the nozzle—releases bubbles evenly throughout the drum, thanks in large part to the activator.

Washing machines of this type do not have a heating element, as they are connected to a central water supply for both cold and hot water. A bubble generator vigorously releases bubbles into the drum throughout the wash cycle, effectively removing a variety of stains.

Analysis of the capabilities of air bubble washing machines

Pros

The advantages of air bubble washing machines are as follows:

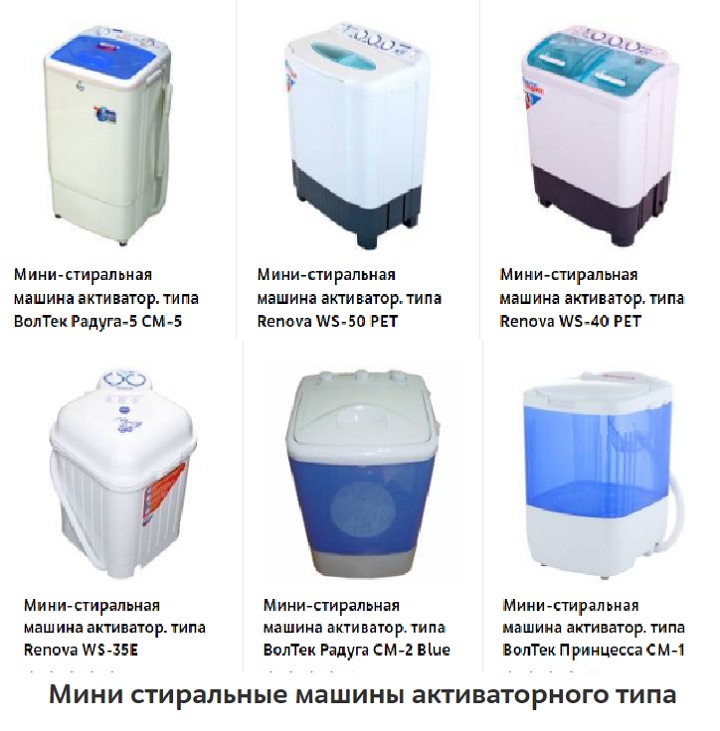

  • Mini-machines of the activator typeSaving energy and detergents, as everything is cleaned using the large amount of foam produced inside;
  • High level of efficiency in removing contaminated areas, boiling effect;
  • Washing time is reduced. The result will be the same as with drum-type washing machines with long program combinations that are not equipped with an air-bubble system;
  • A bubble cushion makes washing your laundry gentle. This cushion prevents items from rubbing against each other or the drum walls, so items stay in their original condition after the wash cycle is complete.
  • Clean items are the same size after washing and never shrink;
  • This type of machine can be stopped at any time, and you can even add or remove some items during washing without turning it off;
  • There is no need to connect the activator machine to the water supply, because water is simply poured into the tank;
  • The noise level during washing is quite low.

These giant washing machines make washing clothes much easier than conventional machines. Thanks to the air cushion, neither the drum nor the clothes inside can cause mechanical damage to the fabric.

Cons

The following is a list of disadvantages of air bubble washing machines:

  • The water should be as soft as possible. Washing machines of this type have fairly high water hardness requirements due to the washing method;
  • Machines of this type may not have the following modes: drain without spin and normal spin;
  • The cost is slightly higher than that of conventional devices;
  • The dimensions are quite large than, say, conventional drum and activator type machines.

Choosing a bubble machine

There are a huge number of such machines on the home appliance market.

Ask yourself…

To choose a washing machine of this type, you need to decide and resolve all issues with a whole list of questions presented below:

  • What type of washing machine do you need?
    Automatic machines are quite expensive, and actuator models are large and require connection to a central water supply.
  • Dimensions of the washing machine?
    The largest capacity of things in the drum.
  • Do you need a spin?
    If you need it, then decide what the highest RPM value is that you need.
  • What type of download do you want?
    There are vertical and frontal ones.
  • What class would you like?
    There are different characteristics for energy supply and spin.
  • Are you interested in brands?
    There are manufacturing companies of different levels.
  • What is the price range?

Focus on successful models

Daewoo

Daewoo was the first company to begin producing its own air bubble machines, and to this day remains the leader in sales, and most importantly, in the quality of its creation!

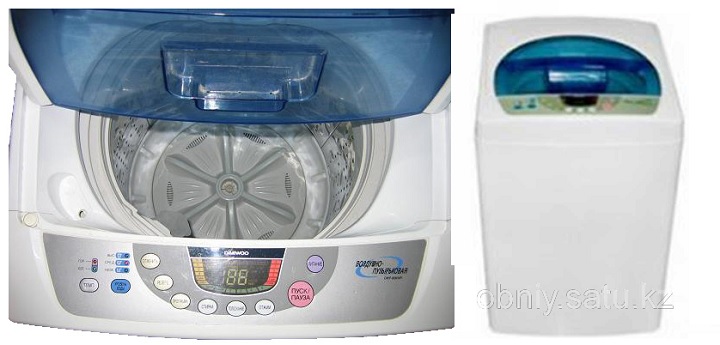

Daewoo bubble machineThe most popular model is – Daewoo DWF-806WPS. This unit has received quite a few excellent reviews. The average price for the leading model is 10,000 rubles.

An even earlier design from the same manufacturer Daewoo DWF-760 MPPrice from 7,000 to 8,000 rubles.

Samsung

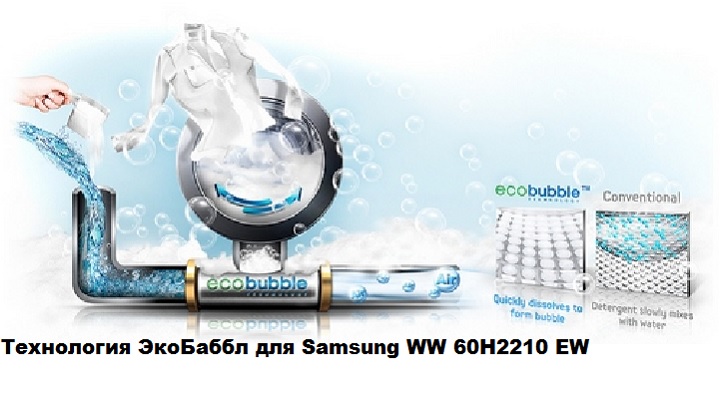

How Ecobubble technology worksManufacturer Samsung with its EcoBubble technology, the unit is Samsung AEGISPrice from 55,000 to 60,000 rubles.

Drum type washing machine – Samsung WW 60H2210 EWPrice from 20,000 to 30,000 rubles and above.

The car is from the same manufacturer – Samsung WF 60 F1R1 W2WPrice from 17,000 to 23,000 rubles and above.

Samsung WF 6 MF1R2 W2W. Price from 20,000 rubles.

Fairy

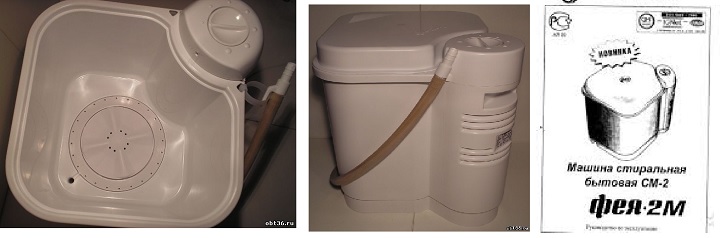

Fairy 2 M. Activator unit, the cost of which does not exceed 5,000 rubles.

Fairy 2M car

Avoiding unsuccessful purchases

  1. Manufacturing companies Magna And EVGO are no longer on sale and have been discontinued.
  2. Samsung WF 6 RF4E2 W0WPrice from 20,000 to 30,000 thousand rubles.
  3. Samsung WF 60 F4E0 W2WPrice up to 25,000 rubles and above.
  4. Samsung WW 80 H7410 EWReviews of this model are rather mixed, with a fair number of negative and positive reviews. The price ranges from 50,000 to 70,000 rubles, with higher prices possible in some regions.

Each washing machine of this type is unique, and some may complain about noise. This can occur during the spin cycle or with other defective models.
