Today's washing machines are so modified and designed that many have already forgotten the days when they washed several loads of laundry in the same water.
A modern washing machine is good in every way, and thanks to it, washing becomes a joy, unless unexpected malfunctions or breakdowns occur.
The machine cannot work without electricity, but there is a certain danger in this.
Unfortunately, power surges often occur, and they can damage your appliance. These surges can also lead to washing machine repairs.
Purpose of a surge protector
To prevent equipment failure due to power surges, you can protect your equipment in advance.
This task will be handled perfectly power filter for a washing machineIt will protect against voltage surges and drops in the network, suppressing impulse and high-frequency interference.

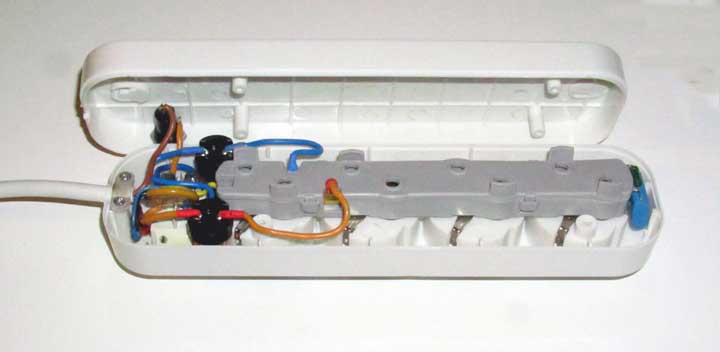

A surge protector is not just an extension cord with a number of sockets and a fuse.
The filter can be built into the equipment during production or purchased as an additional protection component and connected to the device via a power source.

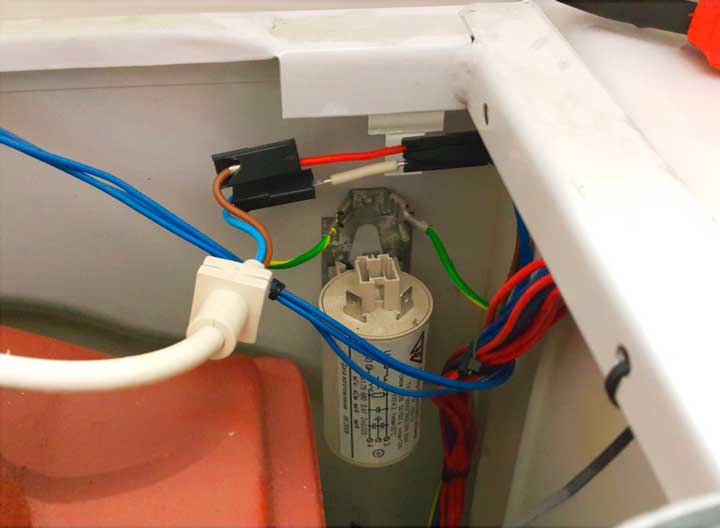

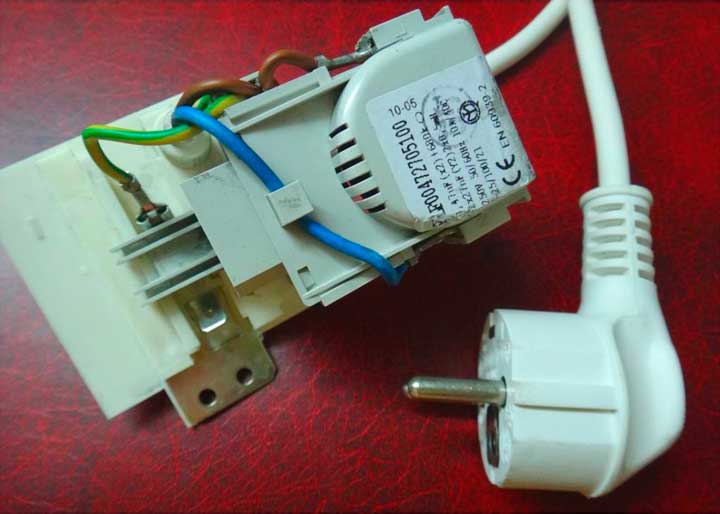

Built-in surge protector

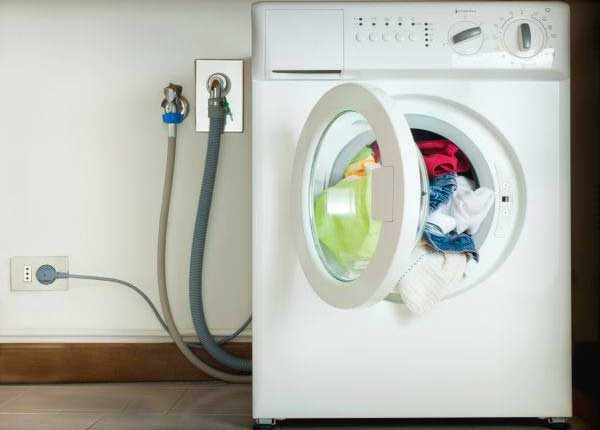

Modern washing machines are quite complex devices, but at the same time they are sensitive to, for example, power surges in the network.
Therefore, reliable protection and stability are required first and foremost, because otherwise a washing machine without a power filter, having received high or low pulses, may burn out.
This is especially true if it's an automatic washing machine with touch controls. Considering the sensitivity of such models, the manufacturer includes a surge protector during production. It's located where the power cord begins. If the internal filter breaks, it can't be repaired but must be replaced. The part is replaced with an original spare part, which isn't always easy.
Internal filters vary in their level of protection depending on the manufacturer and model of the connected equipment. The level of protection is related to:
- maximum load and maximum current;
- passable voltage threshold;
- rated current;
- response time after a voltage surge to shutdown.

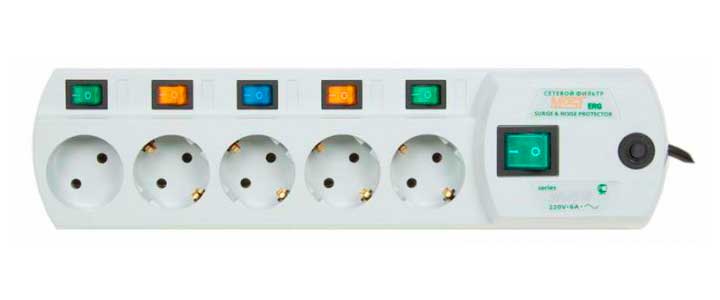

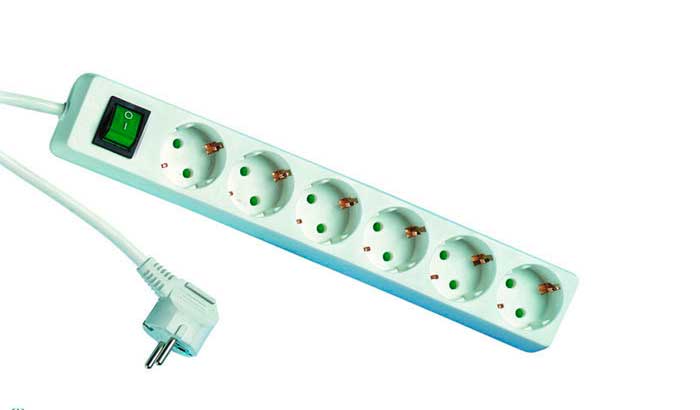

External surge protector
This device can protect equipment from short circuits and power surges by shutting off the electricity supply thanks to a fuse.
What's so good about an extension cord and how to choose a power strip for your washing machine?

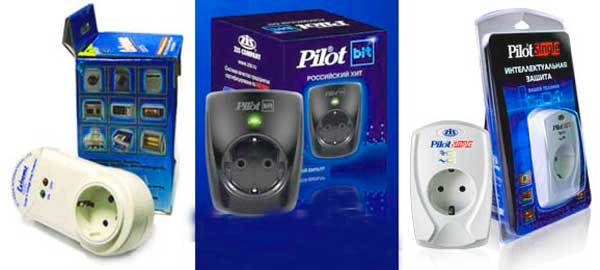

Manufacturers offer extension cords with different numbers of sockets and types of protection:
- base;
- professional;
- advanced.

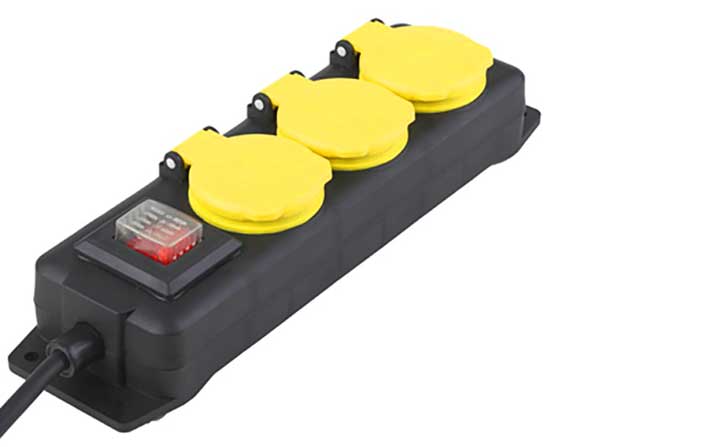

Some models are improved with additional devices in the form of on/off buttons on each outlet or have child protection.
A large number of sockets on the filter extension cord This is useful if you have several devices installed close together. This filter is quite powerful, but also more expensive.
The difference may be in length of the extension cordYou need to pay attention to this when purchasing and calculate the required length in advance.
Maximum load is an important indicator.
The most expensive filter is considered to be the one that can withstand a lightning strike.
If we take professional protection, then the energy surge absorbed by the filter is 2500 J, and for a simple one this figure is 960 J.
The filter can be located immediately several fuses, but one of them must be fusible, and the rest are divided into fast-acting and thermal.
Z

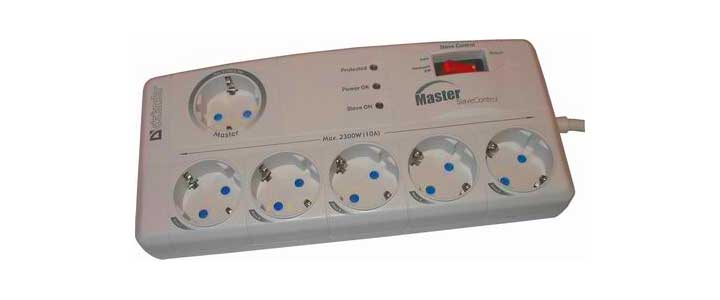

Some manufacturers provide a protective mechanism LED indicator, which allows you to visually assess the performance of the device.
What should you not do when using an external surge protector?
- The device operating through the filter must not have a power greater than 3.5 kW.
- You cannot plug an extension cord into a 380 V network.
- Connecting such devices simultaneously is dangerous.
- A mandatory requirement when using a filter is grounding of the socket.

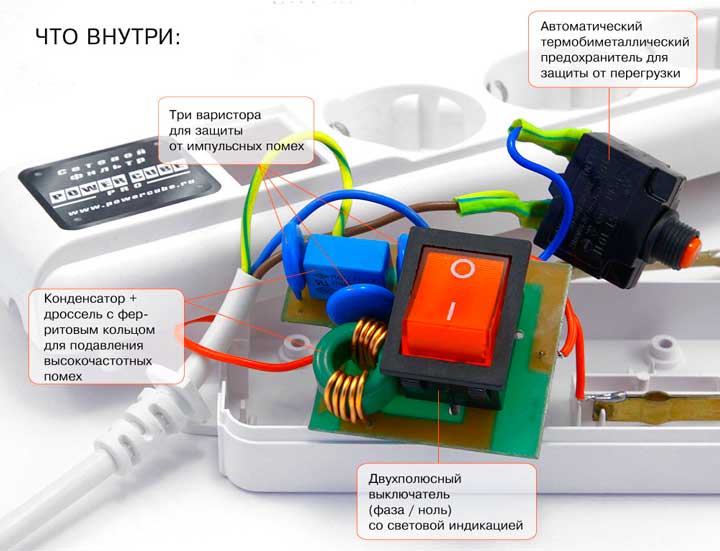

How does the filter work?
If the power filter is built into the washing machine, it may let through oscillations with a frequency of 50 Hz, and the remaining impulses will be immediately blocked.
This is a significant point, since if we consider network interruptions and surges, then significant amplitude surges can cause damage to the automatic machine systems, up to and including complete loss of functionality.
When using the protective device It is prohibited to unplug the washing machine from the socket while it is running., as the filter may break.
It doesn't matter what filter you use. Any filter is better than none.
Even simple inductors with small capacitance are good, the only problem is that they cannot withstand a strong voltage surge.
Some users believe that installing a surge protector is unnecessary. Older washing machine models may be able to handle the current.
But modern equipment without protection can easily be damaged by another network instability, and by starting the washing process, the user can lose control panels, engine, heating element etc.
Instability can also occur within the device itself. When an asynchronous motor starts, a number of current peaks or dips are generated, which can lead to high-frequency harmonics. However, a protective filter smooths out this process by capturing these surges and directing them to ground. This protects devices and appliances connected to the external power grid (microwaves, computers, televisions, and others) from damage.
It is important to take into account the fact that if a malfunction occurs in the network filter, for example, the asynchronous motor burns out, then the operation of the entire washing machine stops completely for safety reasons.
Filter malfunctions
The surge protector rarely fails.

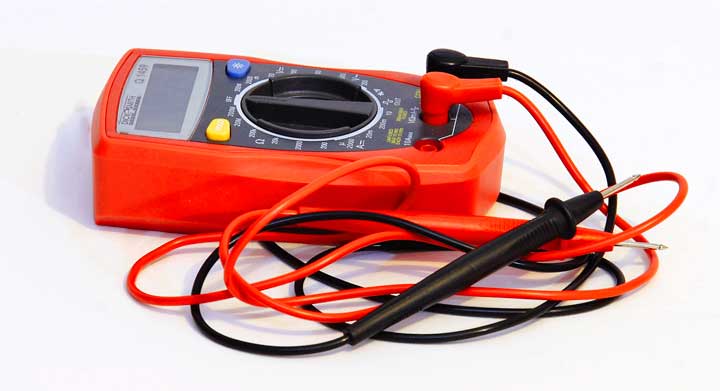

It's not always clear how to check a washing machine's power filter. Its functionality is determined by by ringing the input and output terminals using a multimeter.
Sometimes, input impedance issues arise. To resolve this, simply tighten the alligator clips on the plug. This isn't possible with detachable terminals; simply disconnect them first and then measure them in pairs. The resistance should be 680 kOhm.
If the results are positive, you need to pay attention to the capacitorsThey are connected in parallel, and the ratings must be summed. They are connected in turn, and the total value of the reciprocal value is found.
If the final result does not match the indicators required for normal operation, then the condensate has burned out.
Washing machine surge protectors cannot be repaired—they can only be replaced. Their components are sealed with a compound that prevents current from passing through, so they must be replaced as a whole, not individually.
Is a power strip necessary in a washing machine? The answer is a resounding yes. Choosing a protective device should be approached carefully. Every washing machine user should protect it from power surges and spikes—absolutely.
