Washing machine users don't always place much importance on preventative maintenance. However, the performance of the appliance directly depends on care behind her.

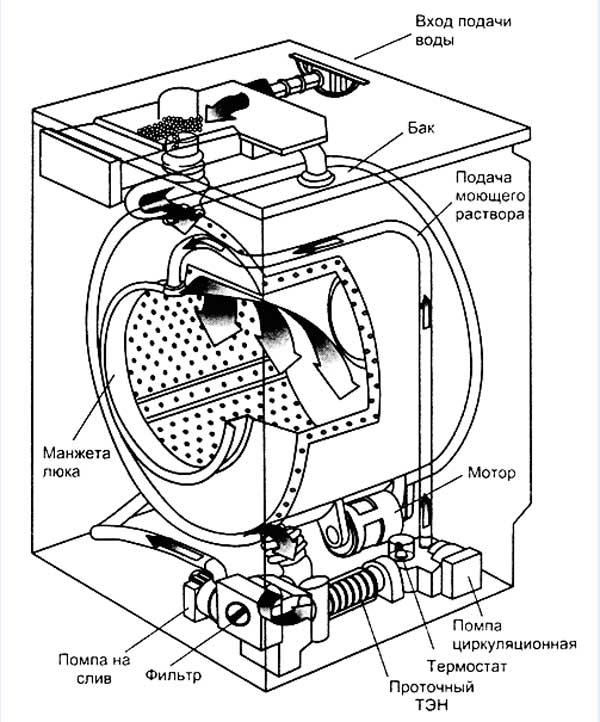

The working process of a washing machine
Today's automatic machines are designed in such a way that water they receive due to the pressure in the cold water main.
Next the water intake valve is activated, which responds to a user-defined program. It is responsible for regulating and timely stopping of water intake. sensor called pressure switch.
In order for the detergent to enter the drum of the machine, it passes through tray with powderAfter washing is complete water flows through the pipe into the drain pump or drain pumpUpon its signal, the used water is discharged into the sewer. The process continues until the tank is completely empty.
Similar actions occur when rinsing the laundry The only difference is the absence of detergents. During the spin cycle, water is also removed from the machine using a drain pump.
Pump It can withstand heavy loads during operation, as it participates in virtually all washing processes and programs. It interacts not only with cold and hot water, but also with chemicals such as powder.

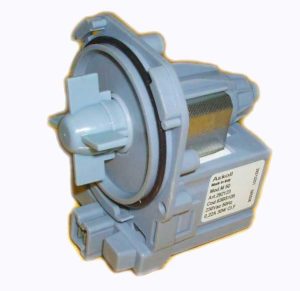

Drain pump designed to operate for many years without failure.

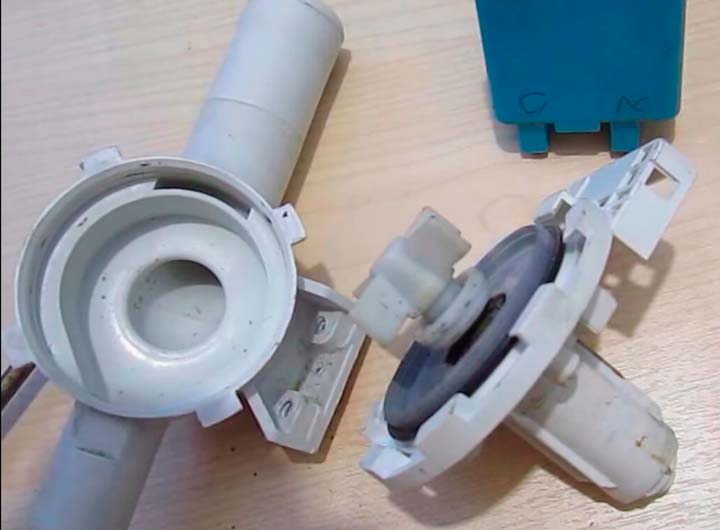

The part is protected by a special grille or what is also called filter, which protects the “snail” – the internal space – from foreign objects: coins, paper clips, buttons, etc., which can easily damage a particularly important element of the pump – impeller.
This type of failure is considered serious and will require replacement of the part. Impeller failure is also characterized by strong vibration washing machine. In this case, the machine will need to be disassembled and the part replaced.

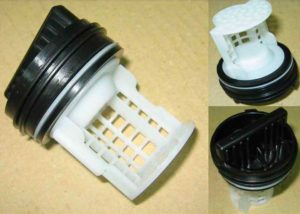

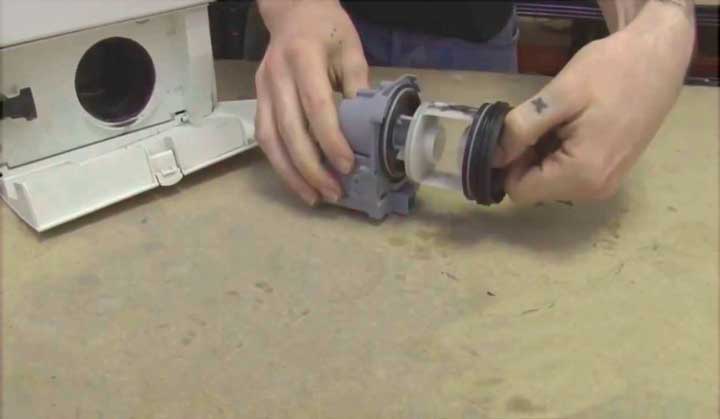

Pump filterIt looks like a mesh and cleans water from foreign objects.
A clogged drain pump is the most common cause of washing machine failure.
In this case, the machine may stop draining completely.
When to clean your washing machine drain pump filter
Regular cleaning of the filter is recommended – once every 3 months.
But this is a rough guideline, and the decision should be made on a case-by-case basis. It depends on how often the machine is used and the number of items washed in it.
You should always pay attention to small items that end up in the washing machine – candy wrappers, coins, buttons, seeds, paper, rhinestones, and others. And to prevent damage, it's enough to immediately clean the drainage system.
How to find a filter
The washing machine manufacturer sets two filters: for water supply and for drainageWhere is the pump filter located in the washing machine?

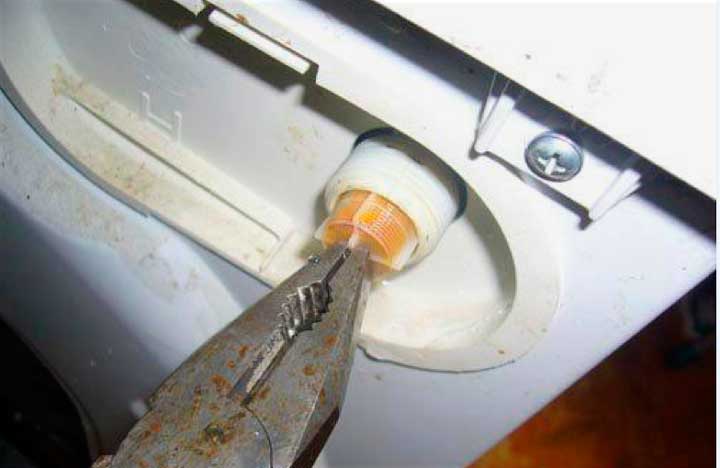

Drainage filter is located near the valve for water supply where the water supply hose connection is located.

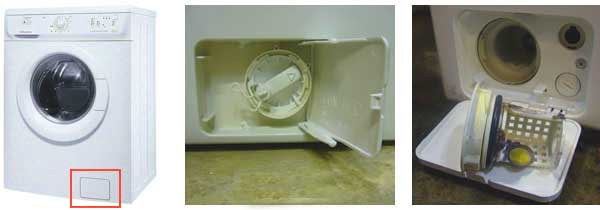

Drain filter In a washing machine, the pump filter is located at the very bottom of the unit. The washing machine's pump filter cover looks like a small door. It is screwed into the pump chamber and is equipped with a very small diameter drain hose. This hose is used for emergency water drainage. To drain the water, simply unscrew the plug and lower the filter into a container.
The drain filter undoubtedly plays a vital role in the life of a car. It protects it from many damages.

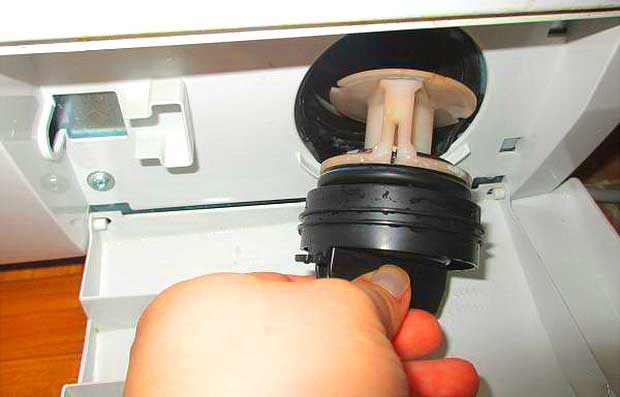

How to clean a washing machine pump filter

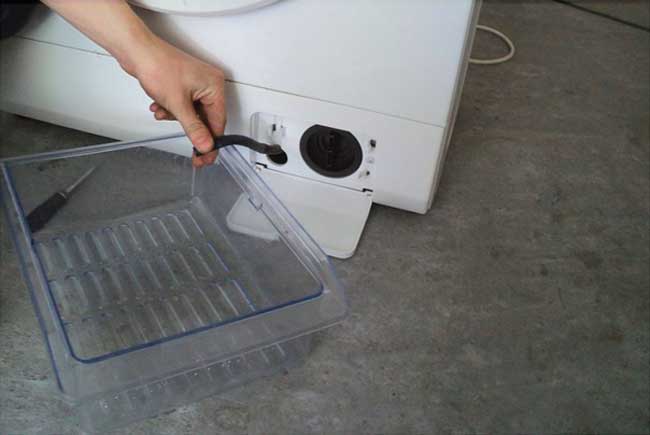

If you see a drain hose at the bottom of the machine when you open the door, use it to drain the water and only then proceed to unscrew the drain filter.
If there is no hose, then go straight to the filter. It unscrews. counterclockwise Carefully, being careful not to strip the threads. It looks like a rubber stopper.
If the part does not unscrew, check if there is a bolt in the middle.
Sometimes manufacturers strengthen the part in this way.
But more unpleasant situations arise, requiring you to disassemble the equipment and remove the washing machine pump filter through the pump.
This can happen when the filter can't be removed due to extreme temperatures or a huge amount of compacted dirt. Consider yourself lucky. When unscrewing, water will leak onto the floor, so you'll need to place a low container underneath to prevent flooding the bathroom.

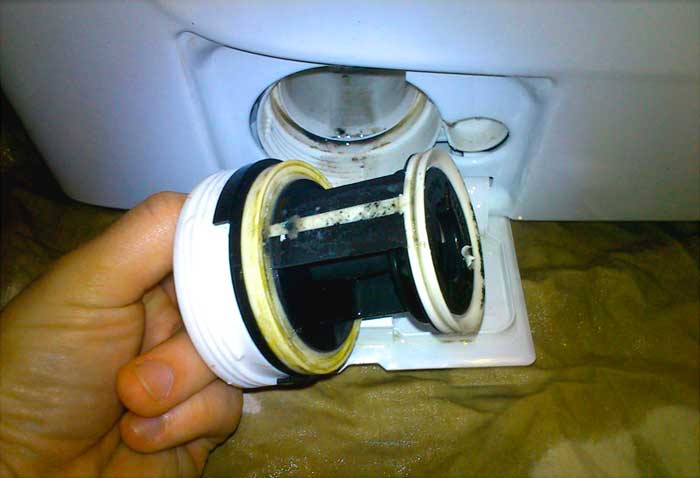

Once the water has drained, check the hole for blockages and then begin cleaning the part itself. Remove all dirt and rinse with water.
This completes cleaning the washing machine's pump filter. All that's left is to replace the part and check whether this was the problem or not.
